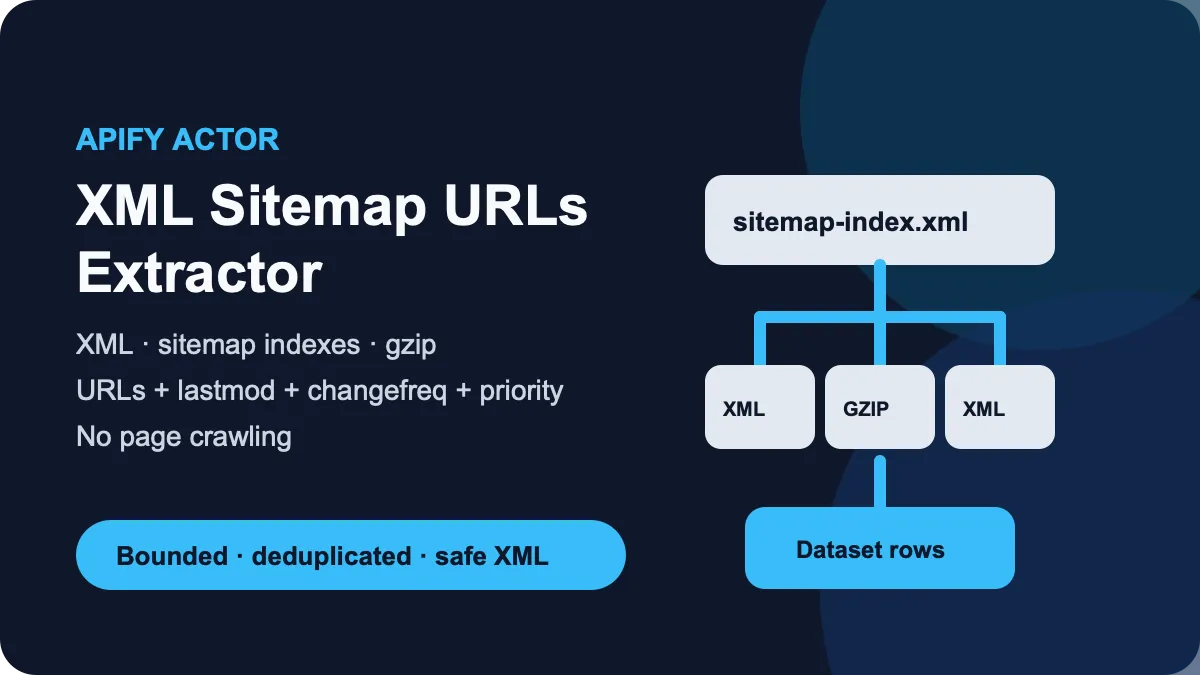

XML Sitemap URLs Extractor

Read public XML sitemaps, sitemap indexes, and gzip sitemap files and save one deduplicated row per page URL. Each row includes url, lastmod, changefreq, priority, and the source sitemapUrl.

Use direct public sitemap URLs. The Actor reads sitemap files only. It does not discover sitemaps from a bare domain and it does not open the page URLs found inside a sitemap.

Table of contents

• What it does
• Data returned
• Quick start
• Input
• Input examples
• Output example
• Output fields
• Pricing and limits
• Use cases
• Scheduling and monitoring
• API and integrations
• Limits and partial results
• Troubleshooting
• FAQ
• Support

What it does

The Actor:

• reads public HTTP(S) XML sitemaps;
• follows nested sitemapindex files up to the depth you set;
• reads gzip sitemap files with bounded decompression;
• saves one row for each unique page URL;
• keeps lastmod, changefreq, priority, and the first sitemap that contained the URL;
• blocks private-network targets, unsafe redirects, XML DTD/entity input, oversized responses, and decompression bombs.

It follows the XML Sitemap protocol described at sitemaps.org.

Good fit

• Build a clean URL inventory before a crawler or audit.
• Export sitemap metadata for SEO or migration work.
• Read a large sitemap index without visiting the listed pages.
• Turn .xml.gz sitemap files into a normal Dataset.

Not a fit

• Bare website domains. Add the direct sitemap URL instead.
• Login-protected or private-network sitemaps.
• Page status checks. The Actor does not request discovered page URLs.
• Image, video, news, or hreflang sitemap extensions.

Data returned

Each Dataset item is one unique page URL. Optional sitemap metadata is null when the source does not provide a usable value.

The default key-value store also contains:

• OUTPUT — terminal status, Dataset link, result count, and the summary record name.
• RUN_SUMMARY — status, counters, limits, HTTP totals, and bounded issues.

Normal statuses are complete, partial, not_found, and error.

Quick start

1. Open the Input tab.
2. Add one direct public sitemap URL to Sitemap URLs (startUrls).
3. Keep the default limits for the first run.
4. Click Start.
5. Open the Dataset and check the url and sitemapUrl fields.

Example first input:

{
  "startUrls": [
    {
      "url": "https://www.sitemaps.org/sitemap.xml"
    }
  ]
}

This input returns the URLs listed by that sitemap. It does not open those URLs.

Input

Field	Type	Required	Default / prefill	Allowed values	What it changes	Recommendation
startUrls	array of URL objects	yes	UI prefill: https://www.sitemaps.org/sitemap.xml	1–20 public HTTP(S) sitemap URLs	Starting sitemap files or indexes	Use direct sitemap URLs, not a bare domain
maxDepth	integer	no	5	0–10	Maximum nested sitemap-index depth; start URLs are depth 0	Keep 5 unless you know the index is deeper
maxSitemaps	integer	no	20	1–50	Maximum unique sitemap files fetched	Lower it to stop a very large index early
maxResults	integer	no	4000	1–4000	Maximum unique Dataset rows	Keep 4000 for the proven public capacity
requestTimeoutSecs	integer	no	20	5–60	Timeout for one sitemap HTTP request	Increase only for a known slow server
maxRetries	integer	no	2	0–4	Retries temporary 429, 5xx, and transport errors	Keep 2 for normal runs
maxCompressedBytes	integer	no	5242880	65536–5242880	Compressed response cap for gzip input	Keep 5242880 or use a lower cap
maxDecompressedBytes	integer	no	8388608	65536–8388608	XML size cap after decompression	Keep the default

Duplicate start sitemap URLs are fetched once. Duplicate page URLs are saved once; the first sitemap that contains the page wins for sitemapUrl.

The main limits interact. The Actor stops when it reaches the result, file, time, request, byte, or spending limit and reports partial when useful work was cut short.

Input examples

Read one sitemap

{
  "startUrls": [
    {
      "url": "https://www.sitemaps.org/sitemap.xml"
    }
  ],
  "maxResults": 100
}

Expected result: up to 100 unique Dataset rows with sitemap metadata.

Read a nested sitemap index

{
  "startUrls": [
    {
      "url": "https://docs.apify.com/sitemap.xml"
    }
  ],
  "maxDepth": 3,
  "maxSitemaps": 20,
  "maxResults": 4000
}

Expected result: child sitemaps are followed until the input limits are reached.

Read a gzip sitemap

{
  "startUrls": [
    {
      "url": "https://www.nytimes.com/sitemaps/new/news.xml.gz"
    }
  ],
  "maxResults": 500
}

Expected result: the gzip payload is decoded within the configured byte caps and the page URLs are saved to the Dataset.

Output example

{
  "url": "https://www.sitemaps.org/",
  "lastmod": "2016-11-21T00:00:00.000Z",
  "changefreq": null,
  "priority": null,
  "sitemapUrl": "https://www.sitemaps.org/sitemap.xml"
}

This is one real Dataset item from the quick-start input. null means the source did not provide a usable value for that optional field.

Output fields

Field	Type	Can be null?	Example	Meaning
url	string	no	https://www.sitemaps.org/	Page URL from the sitemap
lastmod	string	yes	2016-11-21T00:00:00.000Z	Last modification value, normalized to ISO 8601 when parseable
changefreq	string	yes	weekly or null	Publisher-declared change frequency
priority	number	yes	0.8 or null	Publisher-declared priority from 0 to 1
sitemapUrl	string	no	https://www.sitemaps.org/sitemap.xml	First sitemap file that contained this deduplicated page URL

You can read or export Dataset items with the Apify Dataset tools.

OUTPUT record

Field	Type / null	Example	Meaning
schemaVersion	integer	1	Record format version
status	string	complete	complete, partial, not_found, or error
resultCount	integer	84	Saved Dataset row count
datasetId	string or null	your-dataset-id	Default Dataset ID; null only when unavailable
resultsUrl	string or null	https://api.apify.com/v2/datasets/your-dataset-id/items	Dataset API link; null only when unavailable
summaryRecord	string	RUN_SUMMARY	Key of the detailed summary

RUN_SUMMARY record

Field	Type / null	Example	Meaning
schemaVersion	integer	1	Record format version
status	string	partial	Terminal extraction status
startedAt, finishedAt	string	2026-10-05T00:00:00.000Z	ISO timestamps of extraction start and finish
resultCount	integer	84	Saved row count
duplicatesSkipped	integer	1	Duplicate page URLs skipped
sitemapsFetched	integer	3	Successfully parsed sitemap files
sitemapsFailed	integer	0	Failed or unavailable sitemap files
sitemapsQueued	integer	3	Unique sitemap files added to the queue
invalidEntries	integer	0	Entries without a usable page URL
invalidMetadata	integer	1	Unusable optional metadata values
limitReached	string or null	maxResults	Stop limit; null when no limit was reached
http	object	{"requests":3,"retries":0,"redirects":0,"wireBytes":1024,"decodedBytes":2048}	Request counts and received/decoded body sizes, including failed attempts
limits	object	{"startUrlCount":1,"maxDepth":5,"maxSitemaps":20,"maxResults":4000,"requestTimeoutSecs":20,"maxRetries":2,"maxCompressedBytes":5242880,"maxDecompressedBytes":8388608,"runTimeSecs":60,"maxRunBytes":8388608,"maxHttpRequests":64}	Applied input and fixed limits
issues	array	[{"code":"MAX_RESULTS_REACHED","sitemap":null,"message":"Stopped at 4000 unique page URLs"}]	Up to 20 short issue records; sitemap can be null

The record examples explain the format. Live timestamps, IDs, and counters depend on your run. limitReached can be maxDepth, maxSitemaps, maxResults, chargeLimit, runTime, httpRequests, runBytes, or aborted.

Pricing and limits

The Actor uses pay-per-event pricing:

• Actor start: $0.0200 once per run.
• Saved result: $0.00027 for each item written to the default Dataset.
• Platform usage: included in these event prices.

Only saved Dataset items count as result events. A partial run charges only the rows already saved, plus the one start event. A zero-result run still has the start charge because the Actor may need network and parsing work to find that there are no results.

Example	Saved rows	Event price
Small check	10	$0.02270
Normal batch	100	$0.04700
Large batch	1000	$0.29000
Proven maximum	4000	$1.10000

The public maxResults limit is 4000. This limit was tested with a nested public sitemap index before release. Platform defaults are 128 MB, a 120-second safety timeout, and a $1.11 maximum event charge. Raising the platform timeout does not raise the fixed 60-second scan limit.

Use cases

Job	Input	Main output	Typical next step
Build an SEO URL inventory	direct sitemap or index	url, lastmod, sitemapUrl	Export to CSV/JSON for analysis
Prepare a crawl seed list	direct sitemap or index	deduplicated url values	Send URLs to a separate crawler
Review publisher sitemap hints	sitemap URL	lastmod, changefreq, priority	Compare in a spreadsheet
Read a compressed sitemap	.xml.gz URL	normal Dataset rows	Export or call the Dataset API

Scheduling and monitoring

You can run this Actor on an Apify schedule. Each scheduled run creates a new Dataset.

The Actor does not keep history and does not label URLs as new, changed, or removed. If you need change monitoring, compare the Datasets from separate runs in your own workflow.

API and integrations

Use the Run Actor API with the same JSON input shown above. The run object contains the default Dataset ID, and the Dataset contains the extracted URL rows.

The standard Apify Dataset can be consumed by API clients and other Apify integrations. Use url as the main downstream field and sitemapUrl when you need source provenance.

Limits and partial results

• Up to 20 start sitemap URLs per run.
• Up to 4000 unique page results.
• Up to 50 sitemap files when maxSitemaps is raised.
• Sitemap-index depth is bounded from 0 to 10.
• Fixed scan limits: 60 seconds of source work, 64 HTTP attempts (including retries and redirects), and 8 MiB of downloaded response bodies across the whole run.
• Each gzip file is capped at 5 MiB compressed and 8 MiB of XML. XML nesting is capped at 64 levels and each file at 50,000 entries.
• A smaller user spending limit can stop results early; summaries count only saved rows.
• Only public HTTP(S) targets on standard web ports are allowed.
• Redirect destinations are checked again before they are requested.
• DTD and XML entity declarations are rejected.

partial means a limit or a failing sitemap prevented a full run. It can contain zero rows, such as when an index depth limit stops all children. Check RUN_SUMMARY for limitReached and bounded issue details.

not_found means all start sitemap URLs returned HTTP 404/410 and no rows were saved.

error means no useful rows were produced because of a technical or safety error. Technical zero-result errors fail the platform run so they are not confused with a valid empty result.

Troubleshooting

The Dataset is empty and the run says not_found

The direct sitemap URL returned 404 or 410. Check the exact sitemap path and try again.

The run is partial

Open RUN_SUMMARY. If limitReached is maxResults, maxSitemaps, or maxDepth, raise only the relevant input within its allowed range. Fixed scan limits cannot be raised; split large inputs into smaller runs. For chargeLimit, allow enough event budget for the rows you need.

The run fails with a DTD or entity error

The response contains an XML DTD/entity declaration or is not a supported sitemap document. Use a normal XML sitemap generated without external or custom entities.

A private or local URL is rejected

This is expected. The Actor accepts public HTTP(S) sitemap targets only and blocks private, loopback, link-local, and metadata-network destinations.

A large gzip sitemap fails

Check maxCompressedBytes and maxDecompressedBytes. Raise a cap only when you trust the source and the file size is known.

FAQ

Does it crawl every page in the sitemap?

No. It reads sitemap files and saves the listed URLs. It does not request the discovered pages.

Does it find a sitemap from a website homepage?

No. Add the direct sitemap URL, such as https://example.com/sitemap.xml.

Does it support sitemap indexes?

Yes. It follows nested indexes up to maxDepth and maxSitemaps.

Does it support .xml.gz?

Yes. Gzip is detected from the response bytes and decoded with compressed and decompressed byte caps.

Why are some metadata fields null?

They are optional in a sitemap. The Actor keeps null when the publisher does not provide a usable value.

Is a zero-result run free?

No. Every run has the one-time $0.0200 start event. Result events are charged only for rows saved to the Dataset.

Support

For a bug or question, use the Issues tab on this Actor page. Include the run ID, the non-sensitive input mode, and the error text. Do not post API tokens, cookies, private source data, or billing details.
