EU Groundwater Protected Area Linkage Records — EEA WISE

Keyless. Pay per record. Every link between a European groundwater body and the protected areas that depend on it.

This actor turns the European Environment Agency (EEA) WISE Water Framework Directive (WFD) database into clean, per-record data — the association between Europe's groundwater bodies and the PROTECTED AREAS tied to them: drinking-water protection areas, Natura 2000 sites, nitrate vulnerable zones, and other designations. Each run reads the EEA's keyless DiscoData SQL service and delivers one row per groundwater-body-to-protected-area link, structured for environmental and water-management analysis, reusable with acknowledgement of the EEA, with no personal data of any kind.

What this is, in one paragraph

Under the Water Framework Directive, each groundwater body is assessed and linked to the protected areas that rely on it — most importantly the drinking-water protection areas, but also Natura 2000 conservation sites and nitrate vulnerable zones. This actor reads that association table and delivers one record per link: the country and river basin district, the groundwater body (code, name, and area), the protected-area code and TYPE, whether protected-area objectives were set and met, and the body's quantitative and chemical status labels — all carried as filed. It is the protected-area linkage layer of Europe's groundwater assessment.

Who buys this and for what job

• Drinking-water utilities and regulators mapping which groundwater bodies underpin which drinking-water protection areas.
• Conservation and Natura 2000 analysts linking groundwater status to the protected sites that depend on it.
• Agri-environment and catchment products tying nitrate vulnerable zones to their groundwater bodies.
• Data engineers who want the WISE WFD groundwater protected-area association table as clean rows from a keyless source.

EEA licence — reuse with acknowledgement

One licence rider travels on every record. EEA data may be reused, including commercially, provided the source is acknowledged: "Source: European Environment Agency (EEA)." Where third-party content is marked, it keeps its own terms. These are reported associations and status labels as filed — not a compliance verdict.

Water-body grain — no person data

The unit of every record is a link between a groundwater body and a protected area — a water body and its reported attributes, never a person. WISE WFD reporting is at water-body / river-basin level: there is no contact, operator, or responsible-person field in the source table, and none is selected or emitted — the query reads only the water-body identity, the protected-area code and type, the objectives-set/met flags, and the status labels. A person-key guard runs on every record as a backstop. The file_url, where present, points to the official EEA/Eionet reporting file (an organisation reporting system), never a person.

A note on scale, honestly

The source table holds 176,287 rows as verified by an exact COUNT(*) at build time. It carries both the 2016 and 2022 Water Framework Directive reporting cycles (the reporting_year field distinguishes them). The planning index for this category was 172,090; the live count above is slightly higher and is the authoritative figure. This is the real, populated table for this category.

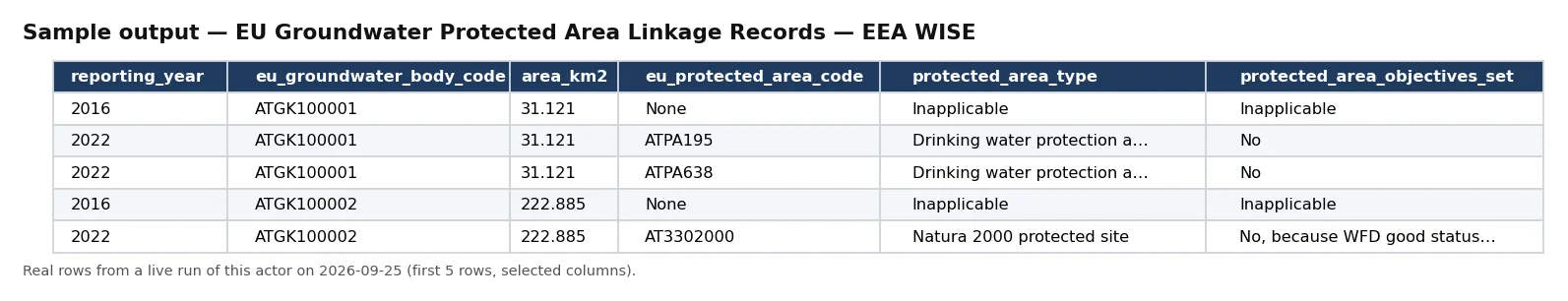

Sample output

Real rows from a live run of this actor (first 5 rows, selected columns).

One full record from the same run, exactly as delivered:

{
  "record_id": "ATGK100001:None:2016",
  "reporting_year": 2016,
  "country_code": "AT",
  "country_name": "Austria",
  "eu_rbd_code": "AT1000",
  "rbd_name": "DANUBE",
  "eu_groundwater_body_code": "ATGK100001",
  "groundwater_body_name": "NO INTERNATIONAL NAME",
  "area_km2": 31.121,
  "eu_protected_area_code": "None",
  "protected_area_type": "Inapplicable",
  "protected_area_objectives_set": "Inapplicable",
  "protected_area_objectives_met": "Inapplicable",
  "gw_quantitative_status_value": "2",
  "gw_chemical_status_value": "2",
  "groundwater_body_transboundary": "No",
  "has_descriptive_data": 1,
  "file_url": "http://cdr.eionet.europa.eu/at/eu/wfd2016/districts/at1000/envwvttw/GWB_AT_20170405.xml",
  "source": "EEA WISE Water Framework Directive (WFD) — groundwater body to protected-area linkage",
  "source_url": "https://discodata.eea.europa.eu/",
  "licence": "European Environment Agency (EEA) WISE database under EU environmental reporting. Reuse is permitted, including for commercial purposes, provided the source is acknowledged: 'Source: European Environment Agency (EEA)'. Third-party content, where marked, keeps its own terms.",
  "attribution": "Source: European Environment Agency (EEA), WISE Water Framework Directive (WFD) database (discodata.eea.europa.eu).",
  "disclaimer": "The link between each European groundwater body and the PROTECTED AREAS associated with it (drinking-water protection areas, Natura 2000 sites, nitrate vulnerable zones and other designations), at groundwater-body / protected-area grain from the EEA WISE WFD database. Each record carries the country and river basin district, the groundwater body (code, name, area), the protected-area code and TYPE, whether protected-area objectives were set and met, and the body's quantitative and chemical status labels VERBATIM. Water-body grain — there is no contact, operator, or responsible-person field in the source, none is selected or emitted, and a person-key guard runs on every record.",
  "observed_at": "2026-09-25T17:20:44Z"
}

Pricing

Event	Free plan	Bronze	Silver	Gold / Platinum / Diamond
groundwater_protected_area_record	$0.05	$0.045	$0.04	$0.0335

Delivered before charged. Blocked runs and empty results cost nothing.

Input

Field	Type	Default	Description
countryCode	string	—	Optional 2-letter country code (e.g. DE, FR).
year	integer	—	Optional WFD reporting cycle year to filter (e.g. 2016, 2022).
maxRecords	integer	500	Ceiling on records delivered and billed.

Output

One JSON object per protected-area link. Representative example (values as reported):

{
  "record_id": "DEGW001:DEPA0001:2022",
  "reporting_year": 2022,
  "country_code": "DE",
  "country_name": "Germany",
  "eu_rbd_code": "DE1000",
  "rbd_name": "RHINE",
  "eu_groundwater_body_code": "DEGW001",
  "groundwater_body_name": "Example GW Body",
  "area_km2": 128.4,
  "eu_protected_area_code": "DEPA0001",
  "protected_area_type": "Drinking water protection area",
  "protected_area_objectives_set": "Yes",
  "protected_area_objectives_met": "Yes",
  "gw_quantitative_status_value": "2",
  "gw_chemical_status_value": "2",
  "source": "EEA WISE Water Framework Directive (WFD) — groundwater body to protected-area linkage",
  "observed_at": "2026-08-27T00:00:00Z"
}

An unbilled RUN_RECEIPT records the robots check, the filters, rows seen and delivered, and whether charged equals delivered.

Field reference

Each record is one groundwater-body-to-protected-area link. Identity: record_id, country_code, country_name, eu_rbd_code, rbd_name, eu_groundwater_body_code, groundwater_body_name, area_km2, and reporting_year. Protected area: eu_protected_area_code, protected_area_type, protected_area_objectives_set, and protected_area_objectives_met. Body status context: gw_quantitative_status_value, gw_chemical_status_value, and groundwater_body_transboundary. Plus has_descriptive_data and file_url. Provenance travels on every record: source, source_url, licence, attribution, disclaimer, and observed_at.

How a run works

A run first re-reads the source host's robots posture from your runtime — the EEA DiscoData host — and stops at the door if that ever changes. It pages the WISE WFD groundwater protected-area association table (filtered to your optional countryCode and year), ordered by the high-cardinality groundwater-body code, and flattens each row to one record — carrying every status label and value verbatim, never anything person-shaped — delivered before it is charged, so a blocked or empty run costs you nothing. The actor stops at your maxRecords ceiling and records charge_equals_delivered in the receipt.

Coverage and scope

The table holds on the order of 176,287 rows across reporting countries, river basin districts, protected-area types, and the 2016 and 2022 WFD reporting cycles. Because each record carries the country_code, the water-body identity, the protected_area_type, and the reporting_year, segmenting by country, basin, protected-area type, or cycle is straightforward. Pull one country, one protected-area type, or the whole table to seed a water-status warehouse.

Working with the data

The linkage is a dependency map, and the fields make it actionable. Because every record pairs a groundwater body with a protected_area_type and the body's quantitative and chemical status, an analyst can find, in one group-by, which drinking-water protection areas sit over groundwater bodies that are not in good status — the exact intersection that matters for source-water protection — and can track whether protected-area objectives were set and met between the 2016 and 2022 cycles.

Cost guidance

One groundwater_protected_area_record per delivered row: cost = rows delivered × your plan's per-record price. Scope with countryCode and year to keep runs bounded. 1,000 rows is $50 (Free) / $33.50 (Gold).

Honest limitations

• As reported. Status labels, objectives flags, and associations are as filed by member states for the WFD reporting cycle; this actor reformats, it does not audit or recompute.
• A linkage, not a verdict. These are reported associations and status labels, not an independent compliance assessment.
• Two cycles merged. The table carries both the 2016 and 2022 reporting cycles; the reporting_year field distinguishes them — filter on it if you want a single cycle.
• Placeholder codes kept verbatim. Where a member state filed a placeholder such as None for a protected-area code, it is carried through as reported.
• Acknowledge the EEA, and note there is no person data of any kind.

Differentiation

This is a net-new category for the NexGenData fleet. It is distinct from the groundwater chemical- and quantitative-exemption cells (which record EXEMPTIONS from good status) and from the groundwater threshold-value cell (the numeric thresholds): this cell records the PROTECTED-AREA associations of each groundwater body. Its specific job is the WFD groundwater-body to protected-area linkage.
